Freedom for your inventions!
ArcadeIT! is something new, something different from other embedded systems. All ports can be freely positioned into your design.
No more weird adapters to extend ports from the mainboard to the case of your device.
Free your creativity and power up the usability of your project.
Get your ArcadeIT! now.
Flexibility in fitting the ArcadeIT! system into your design!

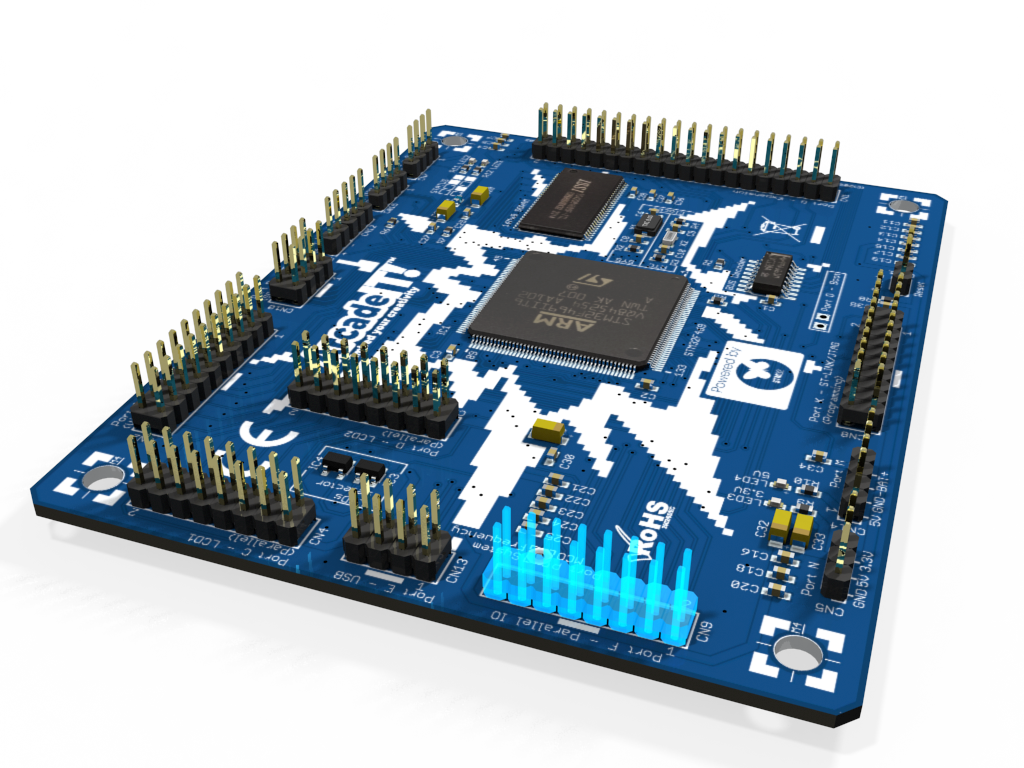

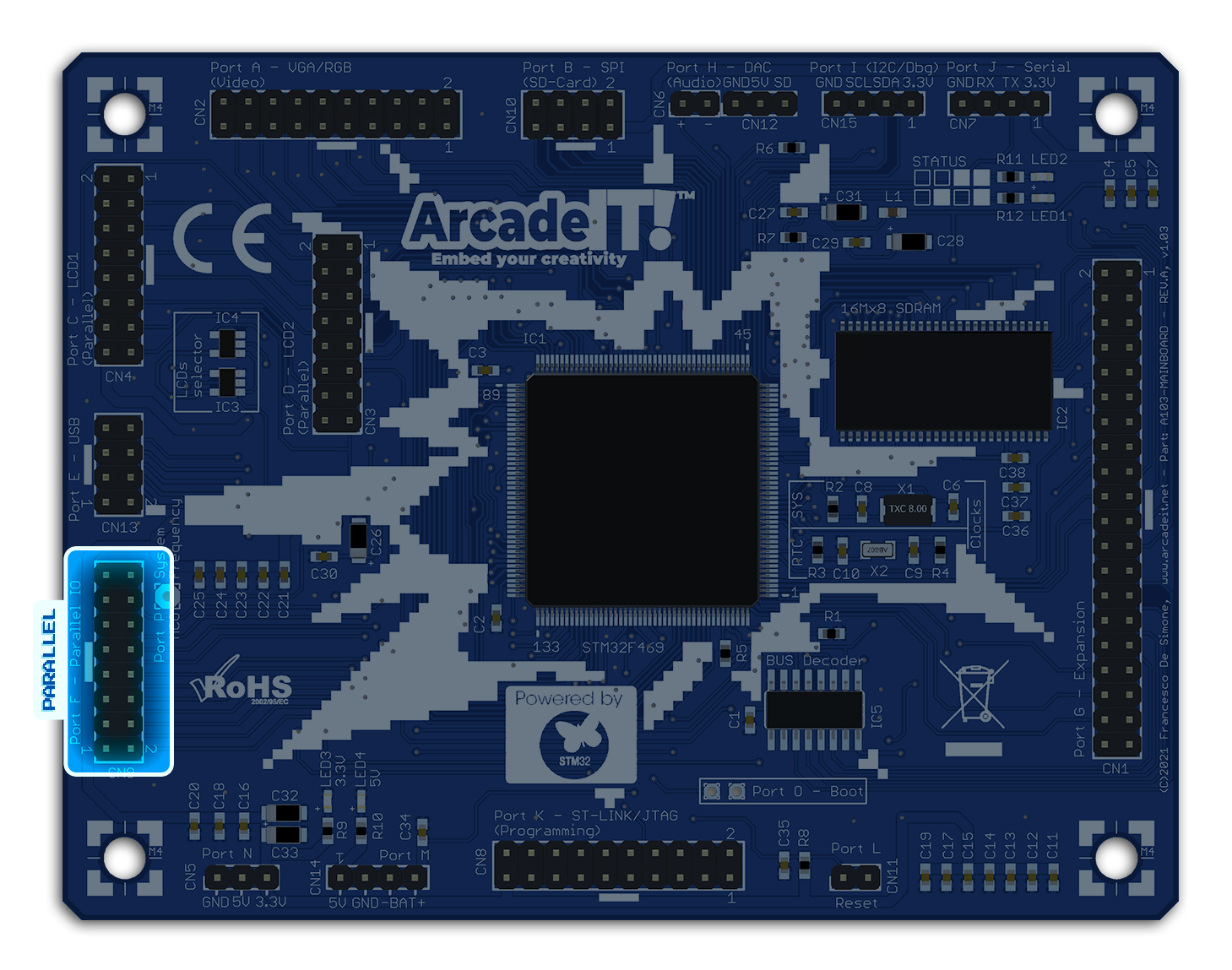

The IO parallel port of the ArcadeIT! mainboard can be uses as a multi-purpose input/output port.
It's organized in a 8 bit bus that can be configurable as input or output or mixed directions. Moreover, there are two lines that combined lets you use them to select four different devices to address the 8 bit word.
A "Strobe" signal can be used as an handshake between the ArcadeIT and the external device.
As a normal application this port is used to connect arcade joypads/Gamepads thanks to the special JOY9 module of the ArcadeIT! line.
